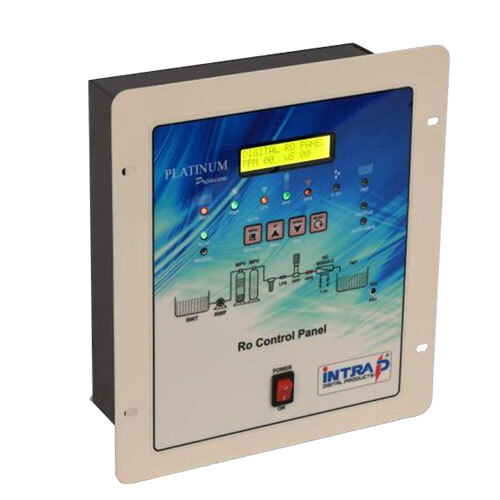

RO Control Panel LCD 2000LPH

RO Control Panel LCD 2000LPH Specification

Rated Current
0-30 Ampere (amp)

Cover Material
ABS

Base Material
Mild Steel

Product Type
Control Panel

Material
Mild Steel

Surface Finish
Powder Coated

Rated Voltage
170V AC 280 Volt (V)

Frequency (MHz)
50 Hertz (HZ)

Dimension (L*W*H)
100x185x210 Millimeter (mm)

Warranty
1 Year

Application
Industrial

RO Control Panel LCD 2000LPH Trade Information

Minimum Order Quantity
10 Pieces

Supply Ability
100 Pieces Per Month

Delivery Time
10 Days

About RO Control Panel LCD 2000LPH

The RO Control Panel LCD 2000LPH is a high-quality control panel designed for industrial applications. Made of durable mild steel, this panel features a compact design with dimensions of 100x185x210mm and an ABS cover material. It operates on a frequency of 50Hz and a rated voltage between 170V AC and 280V, with a rated current of 0-30 Ampere. The surface finish is powder-coated for longevity. Backed by a 1-year warranty, this control panel ensures efficient performance and reliable operation in industrial settings.

Technical Specification

Supply Voltage: 170V AC 280V AC
Current Range: 0-30A
Working Temperature: 0-50 oC
Overall Size : 210(H) x 185(L) x 100(D)
Phase: 1:1 (RWP 1 phase: HPP 1 Phase)
Phase: 1:3 (RWP 1 phase: HPP 3 Phase)
Phase: 3:3 (RWP 3 phase: HPP 3 Phase)

SALIENT FEATURES:

Micro-Controller & SMPS based RO DIGITAL CONTROL Panel.
Configure all AMPVs Connections
Display-2 LINE 16-BIT LCD
TDS & CONDUCTIVITY Display
Range: 1000LPH (1:1,1:3,3:3)
AUTO AMPEARE Settings for RWP & HPP
AUTO / MANUAL Mode options.
HIGH & LOW Voltage Protections.
RWP & HPP Overload and Dry Run Protections.
UV & Dosing Pump Connections provision.
HPS Provision & Monitoring.
LPS Provision & Monitoring.
Raw Water Tank and Treated Water Tank Float.
Dosing Level Float
Flushing Time & Flushing Interval Time
Service and Trip Time
Back Wash and Rinse Time
3-PHASE Voltage Display ,Monitoring Single Phase Preventer and Voltage Unbalance Protection in all
3-PHASE Panels
All settings are editable
