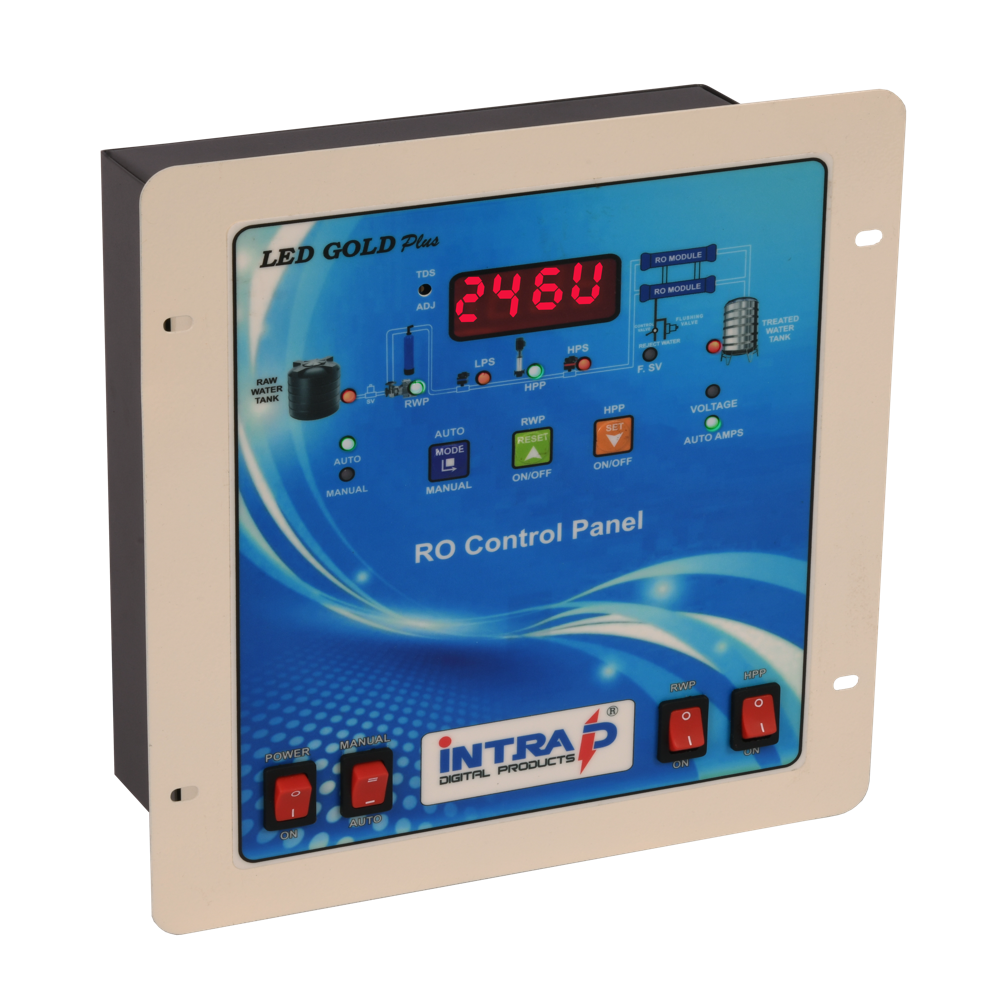

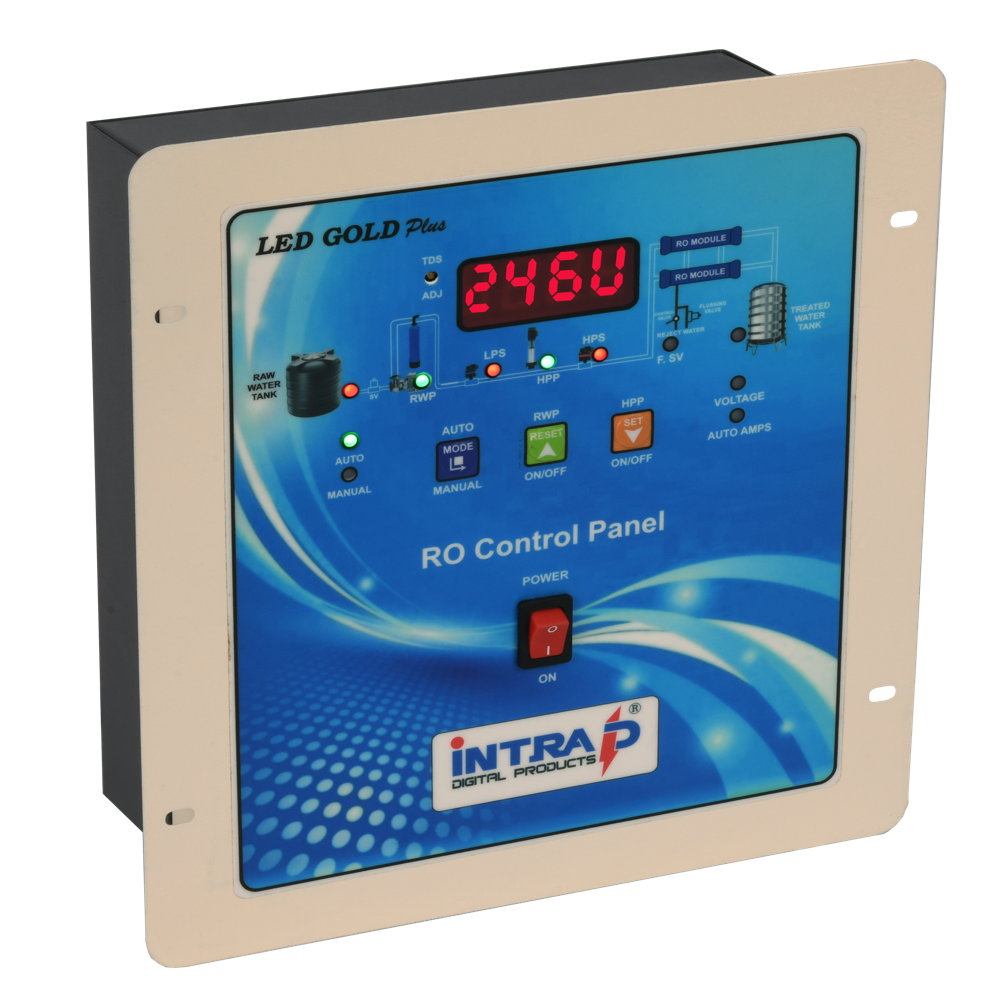

RO Control Panel LED GOLD Plus 1000LPH

The RO Control Panel LED GOLD Plus 1000LPH is a high-quality industrial control panel made from mild steel with a white powder-coated surface finish. It has a rated current of 0-30 Ampere and operates at a frequency of 50 Hertz. The dimensions of the panel are 80x185x210 mm, suitable for various industrial applications. With a rated voltage range of 170V AC 280V, this product comes with a 1-year warranty, ensuring reliability and longevity.

Technical Specification

• Supply Voltage: 170V AC 280V AC
• Current Range: 0-30A
• Working Temperature: 0-50 C
• Overall Size : 210(H) x 185(L) x 80(D)
• Phase: 1:1 (RWP 1 phase: HPP 1 Phase)

SALIENT FEATURES:

• Micro-Controller & SMPS based RO DIGITAL CONTROL Panel.
• Display-LED 4 Digit- 7 Segment
• TDS & CONDUCTIVITY Display
• Range: 1000LPH (1:1)
• AUTO AMPEARE Settings for RWP & HPP
• AUTO / MANUAL Mode options.
• HIGH & LOW Voltage Protections.
• RWP & HPP Overload and Dry Run Protections.
• UV & Dosing Pump Connections provision.
• HPS Provision & Monitoring.
• LPS Provision & Monitoring.
• Raw Water Tank and Treated Water Tank Float.
• Flushing Time & Flushing Interval Time
• Trip Time
• All settings are editable
